Automatic Flat Cardboard Palletizing System

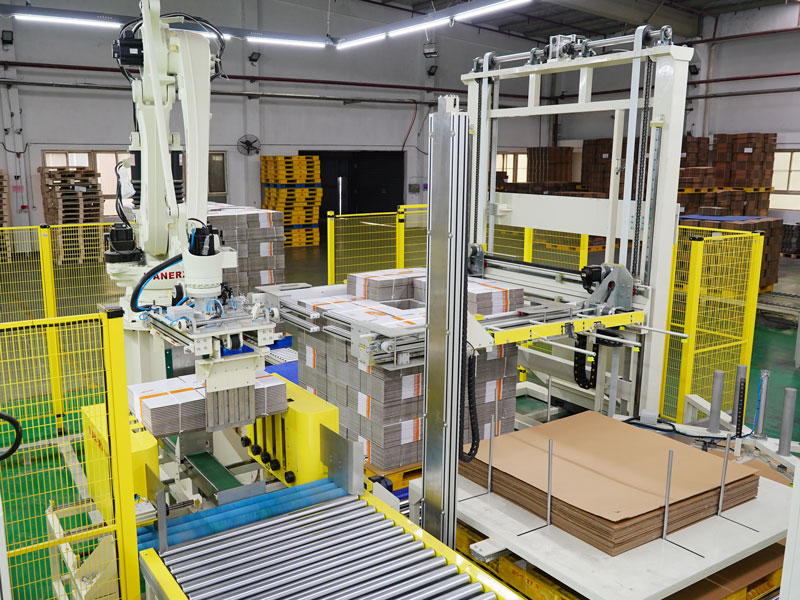

A highly intelligent system that eliminates the need for lifting and handling heavy paper bundles. The robot gripper picks papers of different sizes, dividers and even pallets and places them accurately whilst saving space, improving productivity and providing safety. This system is also very efficient on extra tall pallets with a cycle time of up to 17 times per minute.

Your system from WANERX – the entire packaging process from one source

Integrated Equipment

Layer stacker
Robotic palletizer
Pallet dispenser
Layer pad inserter


Layer stacker

The function of the stacking machine is that when the stacking function is turned on on the screen, the original single-pack feed can be switched to enter the grabbing position every two packs at the same time, in order to reduce the number of actions of the robot, thereby improving the efficiency of palletizing.

Front Layer Stacker Cardboard centering

  1. Size: 1800 L* 1800 W* 1300 H MM
  2. Cardboard size max: 1200 L* 1450 W MM
  3. Side adjustment: 200mm
  4. Micro motor: JSCC
  5. Lifting height: 350 MM
  6. Servo motor: 1kw
  7. Reducer: Limin
  8. Pneumatic element: SMC


Robotic palletizer

The robot can neatly and automatically place (or disassemble) packaged goods of different shapes and sizes on pallets (or production lines, etc.).

Kawasaki four-axis robotic arm for cardboard palletizing

  1. Robot model: CP 130L & 180L
  2. Maker: Kawasaki, Japan
  3. Loading cycle time: 17/min
  4. Loading capacity: 130 Kg

Positioning device Back Layer stacker

  1. Dimensions: 1800 L * 1800 W * 1300 H
  2. Maximum lifting size: 1200 L * 1450 W
  3. Maximum ceiling height: 350 MM
  4. Micro motor brand: Jingyan or CUHK
  5. Pneumatic components brand: SMC

Cardboard Gripper Fixture

  1. Gripping range: 1-1200mm
  2. Loading weight: 30Kg
  3. Transmission method: Synchronous tooth belt
  4. Servo motor:1.5kw Schneider, Siemens, TAIDA
  5. Reducer:Limin or other brands of the same level
  6. Pneumatic element: SMC


Pallet dispenser

For the palletizing machine, the structure of the palletizing machine controls the palletizing board to fall on the chain plate conveyor line. The separation mechanism can automatically adjust the width according to the different sizes of the palletizing board. After the palletizing board is separated, it is transported to the palletizing robot via the chain plate line.

Pallet dispenser

NO.

Pallet dispenser

parameter

1

Size

1900 L* 1700 W* 1800 H (customizable)

2

Capacity of magazine

10 pcs

3

Electrical

1.5kw

4

Pneumatic element

SMC


Layer pad inserter

The function of the partition laying machine is to grab the entire stack of partitions and backing paper one by one through a combination of suction cups and cylinders and wait for the robotic arm to remove them.

Layer pad inserter prevent inverted stacking

  1. Paper pickup machine: 2200 L * 1000 W * 3100 H
  2. Paper laying table: 1500 L * 1500 W * 800 H
  3. Maximum partition storage capacity: 200 pcs
  4. Motor power and brand: 0.4 Kw (Shengbang / CUHK)
  5. Pneumatic component brands: SMC, PIAB
